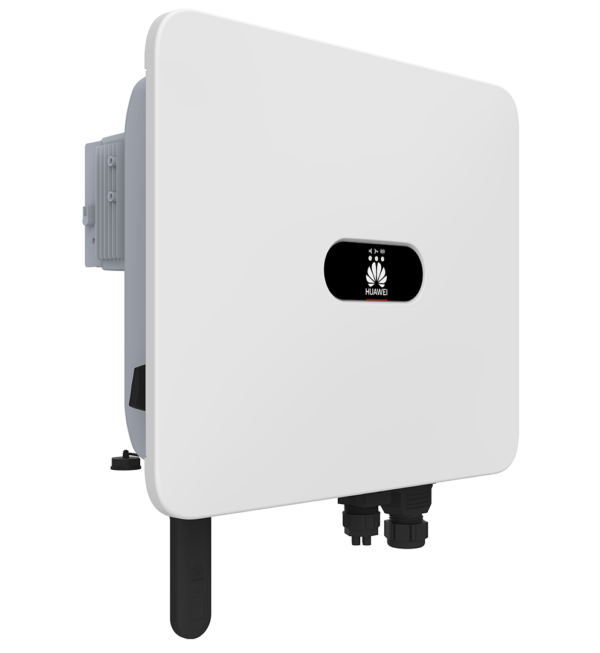

Huawei SUN2000-17-MB0 — Powerful 17 kW Hybrid Solar Inverter

Description

Key Features & Benefits

• 17 kW Three-Phase Hybrid Solar Inverter suitable for large homes, estates, apartments, and commercial facilities

• Up to 98.4% Efficiency ensures optimal solar energy conversion and reduced operating losses

• Hybrid, Battery-Ready Design fully compatible with Huawei LUNA Smart String Energy Storage Systems

• 2 Independent MPPTs with 4 DC Inputs for flexible PV array layouts and improved energy harvest

• Smart Energy Controller integrated into the Huawei FusionSolar smart energy ecosystem

• Built-in AFCI Protection enhances system safety by detecting and eliminating arc faults

• IP66-Rated Enclosure enables reliable outdoor installation in harsh environmental conditions

• Remote Monitoring and Smart Commissioning via the FusionSolar App

• Fan-less Natural Cooling delivers quiet operation and improved long-term durability

• Future-Ready Architecture supporting smart grid interaction, backup power, and advanced energy management

SEO keywords included: Huawei SUN2000-17-MB0, Huawei 17kW inverter, hybrid solar inverter, three-phase solar inverter, Huawei inverter Kenya, battery-ready inverter.

Technical Specifications

General Specifications

• Model: Huawei SUN2000-17-MB0

• Inverter Type: Three-phase hybrid (Smart Energy Controller)

• Rated AC Output Power: 17,000 W

• Maximum AC Apparent Power: 18,700 VA

• Maximum Efficiency: 98.4%

DC Input

• Maximum DC Input Voltage: 1,100 V

• MPPT Operating Voltage Range: 200 V – 1,000 V

• Number of MPPTs: 2

• Number of DC Inputs: 4

AC Output

• Grid Type: Three-phase

• Nominal Grid Voltage: 400 V

• Grid Frequency: 50 / 60 Hz

Battery & Smart Functions

• Battery Compatibility: Huawei LUNA Smart String ESS

• Energy Management: FusionSolar App, SmartGuard, EMMA compatible

• Communication Interfaces: RS485, WLAN (via dongle), optional Ethernet

Safety & Protection

• Arc-Fault Circuit Interrupter (AFCI)

• Anti-islanding Protection

• DC & AC Surge Protection

• Residual Current Detection

• Insulation Resistance Monitoring

Environmental & Mechanical

• Ingress Protection Rating: IP66

• Operating Temperature Range: –25 °C to +60 °C

• Cooling Method: Natural convection (fan-less)

• Mounting Type: Wall-mounted

• Outdoor Installation: Supported
