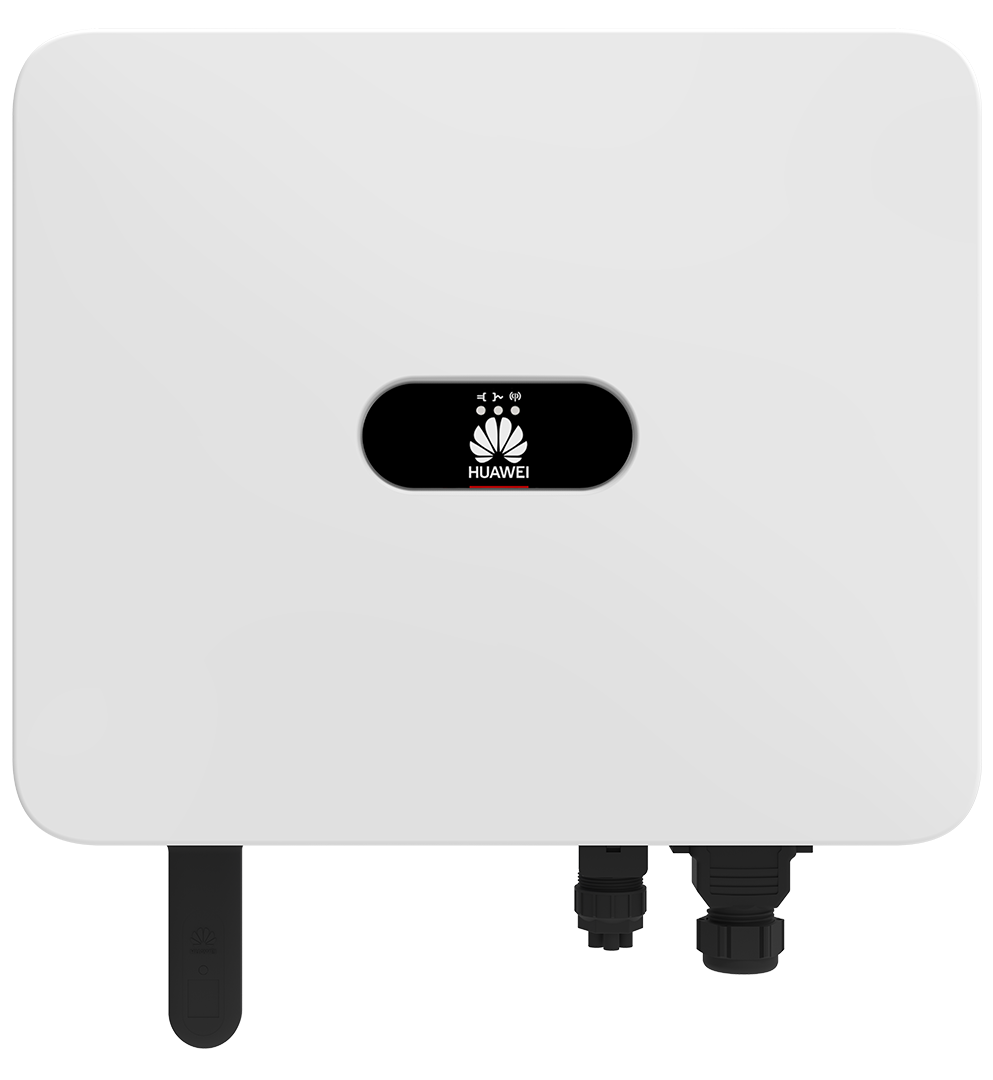

Huawei SUN2000-15-MB0 — High-Capacity 15 kW Hybrid Solar Inverter

Key Features & Benefits

• 15 kW Three-Phase Hybrid Solar Inverter ideal for large residential properties, apartments, and commercial systems

• Up to 98.4% Conversion Efficiency for maximum energy yield and lower system losses

• Hybrid & Battery-Ready Design compatible with Huawei LUNA Smart String Energy Storage Systems

• 2 Independent MPPT Trackers with 4 DC Inputs enabling flexible PV array configurations

• Smart Energy Controller fully integrated with Huawei FusionSolar ecosystem

• Advanced AFCI Protection actively reduces fire risk through arc-fault detection

• IP66 Protection Rating ensures reliable outdoor operation in demanding environments

• Remote Monitoring & Smart Commissioning via FusionSolar App for real-time performance insights

• Fan-less, Natural Cooling Design ensures quiet operation and extended service life

• Future-Proof Solution ready for smart grid interaction, backup power, and energy optimization

SEO keywords included: Huawei SUN2000-15-MB0, Huawei 15kW inverter, hybrid solar inverter, three-phase inverter, battery-ready solar inverter, Huawei inverter Kenya.

Technical Specifications

General Specifications

• Model: Huawei SUN2000-15-MB0

• Inverter Type: Three-phase hybrid (Smart Energy Controller)

• Rated AC Output Power: 15,000 W

• Maximum AC Apparent Power: 16,500 VA

• Maximum Efficiency: 98.4%

DC Input

• Maximum DC Input Voltage: 1,100 V

• MPPT Voltage Range: 200 V – 1,000 V

• Number of MPPTs: 2

• Number of DC Inputs: 4

AC Output

• Grid Type: Three-phase

• Nominal Grid Voltage: 400 V

• Grid Frequency: 50 / 60 Hz

Battery & Smart Functions

• Battery Compatibility: Huawei LUNA Smart String ESS

• Energy Management: FusionSolar App, SmartGuard, EMMA supported

• Communication Interfaces: RS485, WLAN (via dongle), optional Ethernet

Safety & Protection

• Arc-Fault Circuit Interrupter (AFCI)

• Anti-islanding Protection

• DC & AC Surge Protection

• Residual Current Monitoring

• Insulation Resistance Detection

Environmental & Mechanical

• Ingress Protection: IP66

• Operating Temperature Range: –25 °C to +60 °C

• Cooling Method: Natural convection (fan-less)

• Installation Type: Wall-mounted

• Outdoor Installation: Supported
