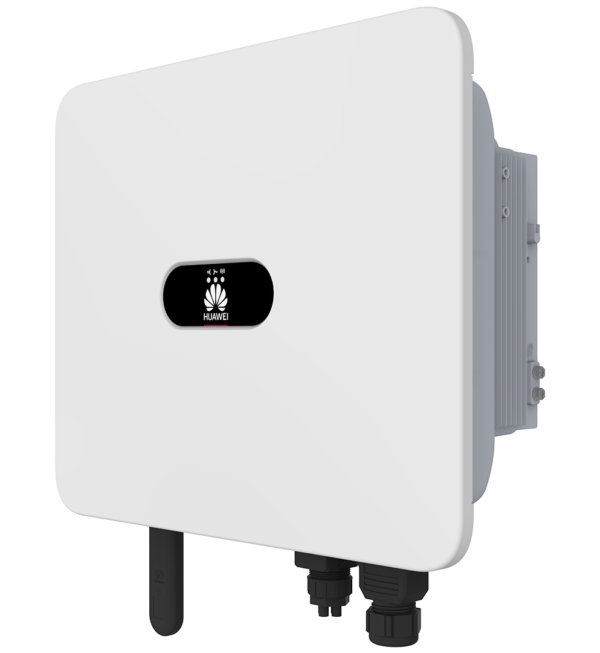

Huawei SUN2000-25-MB0 — High-Capacity 25 kW Hybrid Solar Inverter

Description

Key Features & Benefits

• 25 kW Three-Phase Hybrid Solar Inverter ideal for commercial buildings, factories, hotels, schools, and large solar plants

• Up to 98.4% Conversion Efficiency delivers superior energy yield and reduced operating losses

• Hybrid & Battery-Ready Architecture compatible with Huawei LUNA Smart String Energy Storage Systems

• 2 Independent MPPTs with 4 DC Inputs for flexible PV array design and optimized string performance

• Smart Energy Controller fully integrated into the Huawei FusionSolar intelligent energy ecosystem

• Built-in AFCI Protection enhances fire safety through rapid arc-fault detection and shutdown

• IP66 Weatherproof Enclosure designed for reliable outdoor operation in harsh environments

• Remote Monitoring, Diagnostics & Smart Commissioning via the FusionSolar App

• Fan-less Natural Cooling Design ensures silent operation and long service life

• Future-Ready Platform supporting smart grid interaction, backup power, and advanced energy management

SEO keywords included: Huawei SUN2000-25-MB0, Huawei 25kW inverter, hybrid solar inverter, three-phase commercial inverter, battery-ready inverter, Huawei solar inverter Kenya.

Technical Specifications

General Specifications

• Model: Huawei SUN2000-25-MB0

• Inverter Type: Three-phase hybrid (Smart Energy Controller)

• Rated AC Output Power: 25,000 W

• Maximum AC Apparent Power: 27,500 VA

• Maximum Efficiency: 98.4%

DC Input

• Maximum DC Input Voltage: 1,100 V

• MPPT Operating Voltage Range: 200 V – 1,000 V

• Number of MPPTs: 2

• Number of DC Inputs: 4

AC Output

• Grid Type: Three-phase

• Nominal Grid Voltage: 400 V

• Grid Frequency: 50 / 60 Hz

Battery & Smart Functions

• Battery Compatibility: Huawei LUNA Smart String ESS

• Energy Management: FusionSolar App, SmartGuard, EMMA supported

• Communication Interfaces: RS485, WLAN (via dongle), optional Ethernet

Safety & Protection

• Arc-Fault Circuit Interrupter (AFCI)

• Anti-islanding Protection

• DC & AC Surge Protection

• Residual Current Monitoring

• Insulation Resistance Detection

Environmental & Mechanical

• Ingress Protection Rating: IP66

• Operating Temperature Range: –25 °C to +60 °C

• Cooling Method: Natural convection (fan-less)

• Installation Type: Wall-mounted

• Outdoor Installation: Supported
